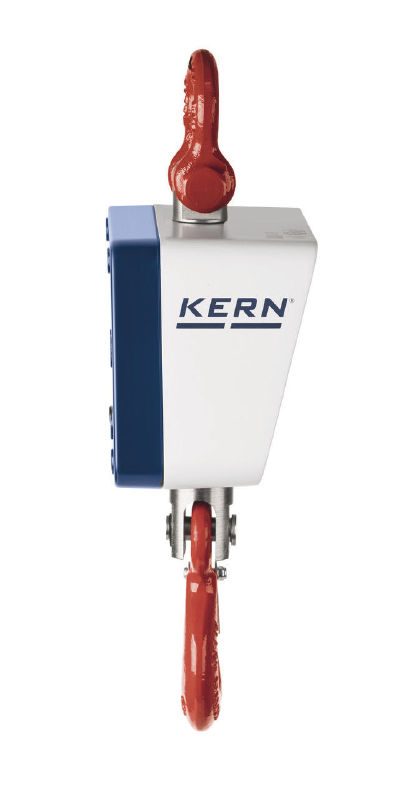

Crane scale HCD

lei 2.190,00lei 2.290,00

High-resolution hanging scale for loads up to 300 kg

Golește
SKU: HCD Categorie:

Descriere

  • NEW: Fully-equipped crane scale for low to medium load ranges. The solid design guarantees that extra level of safety (TÜV tested). Thanks to the large LCD display and the remote control which is delivered as standard, it can also be operated safely from a distance and results can be read off
  • With the TÜV mark, the scale meets the requirements of the standard EN 13155 (Non-fixed load lifting attachments) and EN 61010-1 (Electrical safety)
  • High mobility: thanks to battery operation, compact, lightweight construction, it is suitable for the use in several locations (production, warehouse, dispatch department)
  • Hold function: When the weighing value remains unchanged the weight indicated on the display is automatically ”frozen” until the HOLD key is pressed
  • Tare: Resets the display to „0” when there is a load on the scale. Now removed or added loads are directly displayed
  • Battery level indicator, visual using LED
  • Large high-contrast display that is easy to read
  • : display automatically switched off after 5 min without a change of load. Automatic activation with the touch of a key
  • Hook with safety catch, revolving
  • Infrared remote control standard. Radio range up to 20 m. All functions can be selected. Batteries included

STANDARD OPTION
Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.
Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model.
Battery operation: The battery type is specified for each device.
Strain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing
Parcel shipment via courier. Ready for dispatch in 1 day
Rechargeable battery pack: rechargeable set
DAkkS calibration possible. The time required for DAkkS calibration is specified in the pictogram.
Model
Weighing
capacity
[Max]
kg
Read-
ability
[d]
g
Net
weight
approx.
kg
A

mm

B

mm

C

mm

D

mm

E

mm

F

mm

G

mm

Option
DAkkS
Calibration
Certificate
HCD 60K-2
60
20
0,95
150
79,3
97,7
276,5
246,5
26
23,5
1
HCD 100K-2
150
50
1,151
150
79,3
97,7
276,5
246,5
26
23,5
1
HCD 300K-1
300
100
0,945
150
79,3
97,7
276,5
246,5
26
23,5
1
Dual-range balance switches automatically to the next largest weighing range [Max.] and readout [d].
HCD 100K-2D
60 | 150
20 | 50
1,048
150
79,3
97,7
276,5
246,5
26
23,5
1
HCD 300K-2D
150 | 300
50 | 100
0,9
150
79,3
97,7
276,5
246,5
26
23,5
1

Informații suplimentare

Greutate Nu se aplică
Dimensiuni 155 × 130 × 54 cm
Kern Model

HCD 100K-2, HCD 100K-2D, HCD 300K-1, HCD 300K-2D, HCD 60K-2
