Drive-through scale NFB

lei 14.890,00 – lei 18.190,00

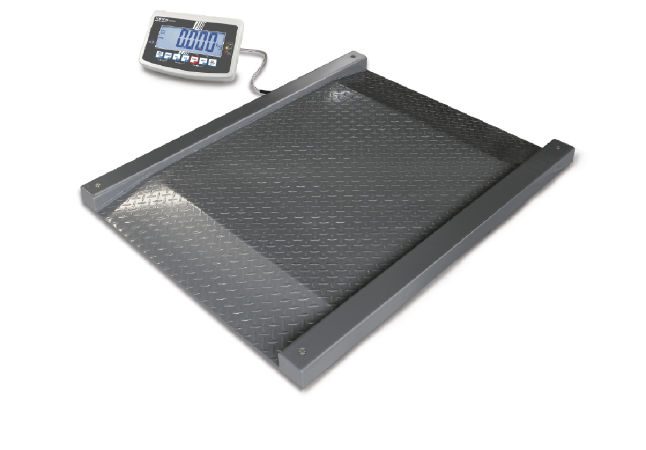

Drive-through scale (IP67) with XXL display device and EC type approval [M]

Golește
SKU: NFB Categorie:

Descriere

  • Drive-through scale for rapid weighing of e.g. wire cage trolleys, shelf trolleys, container trolleys, storage trolleys, sack trucks, transpallets, mobile containers, containers refuse etc.
  • Low platform height and integrated access ramps on both sides facilitate access.
  • Weighing bridge: anti-slip corrugated steel plate, lacquered, protection against dust and water splashes IP67, 4 silicone-coated steel load cells. Also available as component without the display device,
  • Display device
  • Protective working cover included with delivery
  • Did you know? Our floor scales are delivered in a robust wooden box. This protects the high-quality weighing technology from environmental influences and stresses during transportation. KERN – always one step ahead

Note: For verified scales the weighing bridge must be fixed to the floor. Optionally, with an access ramp, a footplate pair or a pit frame
Shipment via freight forwarder. Please ask for dimensions, gross weight, shipping costs

STANDARD OPTION FACTORY
Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.
Data interface RS-232: To connect the balance to a printer, PC or network
Piece counting: Reference quantities selectable. Display can be switched from piece to weight.
Totalising level A: The weights of similar items can be added together and the total can be printed out.
Weighing with tolerance range: Upper and lower limiting can be programmed individually, e. g. sorting and portioning.
Vibration-free weighing: (Animal weighing program) Vibrations are filtered out so that a stable weight is obtained.
IP 67 protection in accordance with DIN EN 60529:Designed for temporary use in wet areas. Can be cleaned with water jet. Temporary submersion is possible. Dustproof.
Universal mains adapter: with universal input and optional input socket adapters for EU, GB
Strain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing
Pallet shipment via freight forwarder.Ready for dispatch in 2 days
DAkkS calibration possible. The time required for DAkkS calibration is specified in the pictogram.
Bluetooth data interface: To transfer data from the balance to a printer, PC or other peripherals.
Rechargeable battery pack: rechargeable set
Verification possible. The time required for verification is specified in the pictogram.
Model
Weighing
capacity
[Max]
kg
Readability

[d]
g

Verific.
value
[e]
g
Minimum
load
[Min]
g
Option
Verification
Option
DAkkS
Calibration
Certificate
NFB 600K200M
600
200
200
4000
1 ✓
1 ✓
NFB 600K200LM
600
200
200
4000
1 ✓
1 ✓
NFB 1.5T0.5M
1500
500
500
10000
1 ✓
1 ✓
NFB 1.5T0.5LM
1500
500
500
10000
1 ✓
1 ✓
Note: For applications that require verification, please order verification at the same time, initial verification at a later date is not possible. Verification at the factory, we need to know the full address of the location of use.

Informații suplimentare

Greutate 25 kg
Dimensiuni Nu se aplică
Kern Model

NFB 1.5T0.5LM, NFB 1.5T0.5M, NFB 600K200LM, NFB 600K200M
filter_battery_operated

0
filter_platform_length

100, 120
filter_platform_width

100, 120
filter_weight_capacity

1500, 600
filter_class_iii

1
