Descriere

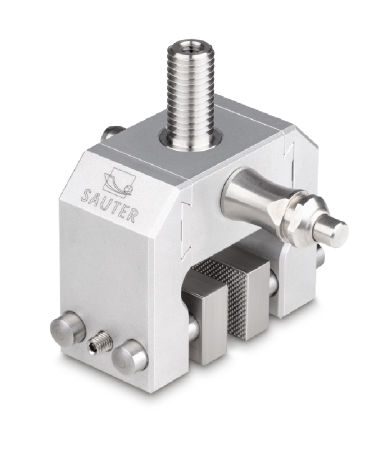

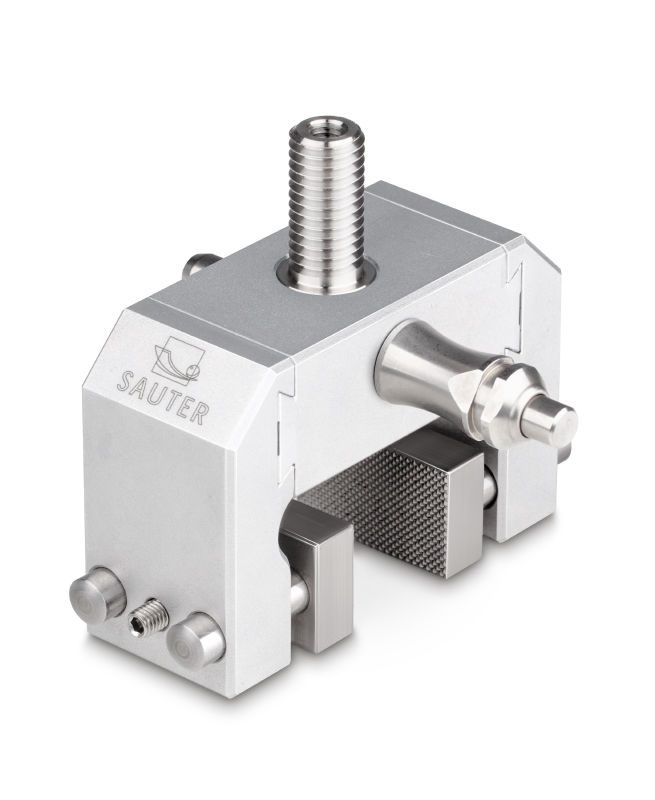

- High-quality dynamometer clamp in the medium force range with enormous flexibility so that they can be adapted quickly to the most varied test objects
- Solid version for high clamp forces
-
Flexible range from
0–15 mm (standard) and from

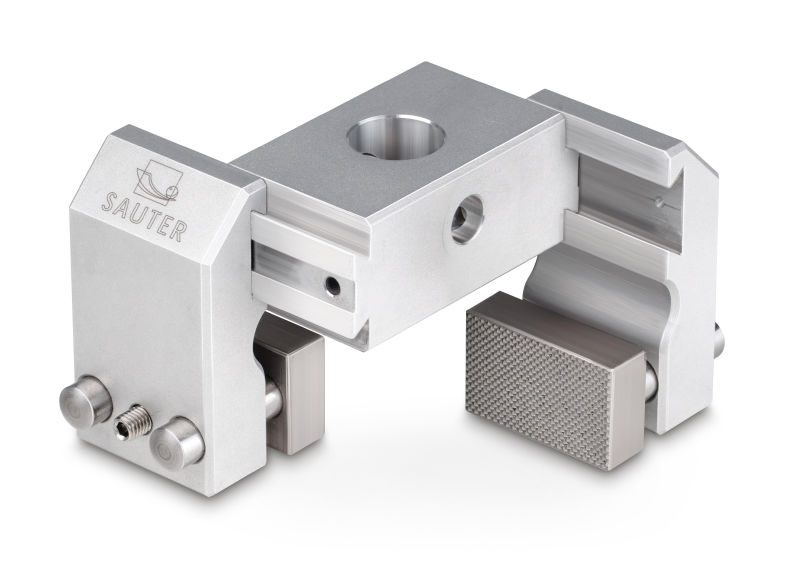

15–30 mm (in combination with the optional, wide central section: SAUTER AE 2K-A01) - You can choose from many different types of jaws

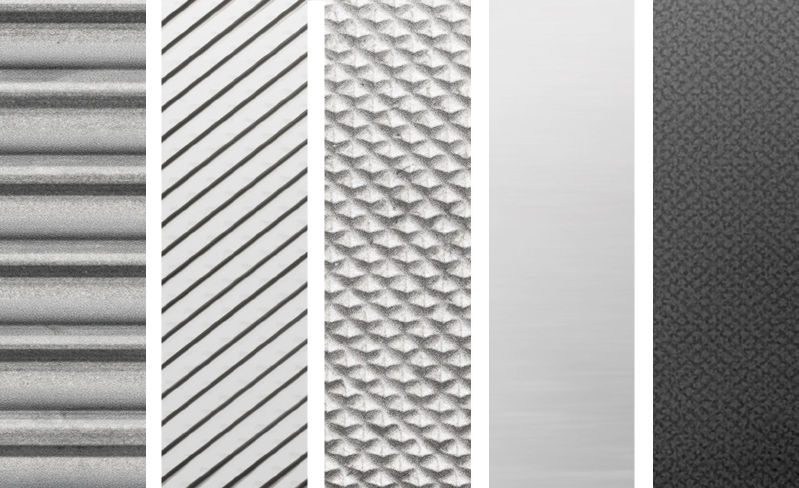

- – Jaws with pyramid grip as standard, W×H 32×30 mm
-
– Jaws with corrugated grip, knurled grip, V-grip for round samples up to 15 mm diameter, plain jaws for you to process yourself and jaws with rubber coating (1 mm), and many more versions all available as options, please ask for details
-
The modular design means that you can adjust, expand and clean the clamps quickly
-

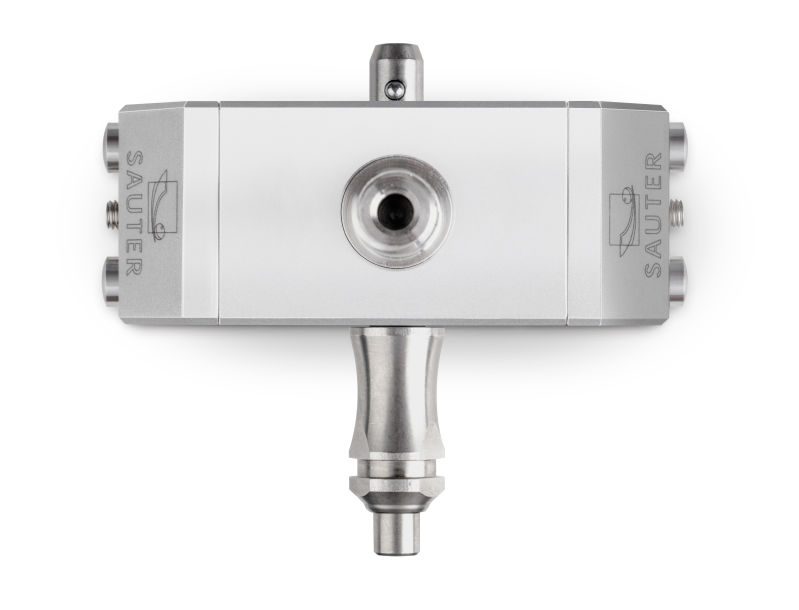

With the practical ball locking pin system, the clamps can be quickly adapted to meet particular requirements, test objects, operational environments, e.g. test bench or measuring device etc.
- Can be used with all SAUTER force-measuring devices or test bench systems
- For tension and compression testing up to 2 kN
- Overload protection: 150 % of [Max]
- Scope of supplies: 1 clamp with central section for clamp ranges of 0-15 mm, 1 adapter, 1 safety pin
- For dimensional drawing see the operating instructions
- When placing individual orders for clamps, please note: Clamps may require adapters to enable them to be mounted. Please let us know which devices are to be used with the clamp. In this way we will be able to deliver the appropriate adapters with the clamp
