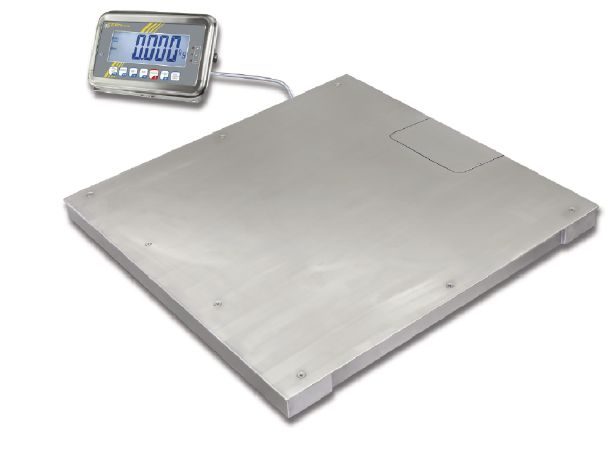

Floor scale BFN

lei 26.990,00 – lei 33.590,00

Stainless steel weighing bridge with screw-on weighing plate (IP68) and stainless steel display device (IP65), with EC type approval [M]

Golește
SKU: BFN Categorie:

Descriere

  • Tough industry standard suitable for use in harsh environments
  • Weighing plate screwed on from the top with stainless steel screws, so it easy to remove, hygienic and easy to clean
  • Weighing bridge made of stainless steel, extremely resistant to bending because of its high material thickness. 4 welded Stainless steel load cells, protection against dust and water splashes IP68. Weighing bridge can also be delivered as components without the display device:
  • Your support in a -compliant quality system
  • Easy levelling of the weighing bridge as well as access to the junction box from above
  • Display device: stainless steel, protection against dust and water splashes IP65, for industrial applications, hygienic and easy to clean, integrated power supply,The display device can also be delivered as a component without the weighing bridge, Details see
  • Benchtop stand incl. wall mount for display device as standard
  • of weights
  • Did you know? Our floor scales are delivered in a robust wooden box. This protects the high-quality weighing technology from environmental influences and stresses during transportation. KERN – always one step ahead

Note: For verified scales the weighing bridge must be fixed to the floor. Optionally, with an access ramp, a footplate pair or a pit frame
Shipment via freight forwarder. Please ask for dimensions, gross weight, shipping costs

STANDARD OPTION FACTORY
Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.
Totalising level A: The weights of similar items can be added together and the total can be printed out.
Piece counting: Reference quantities selectable. Display can be switched from piece to weight.
Weighing with tolerance range: Upper and lower limiting can be programmed individually, e. g. sorting and portioning.
Vibration-free weighing: (Animal weighing program) Vibrations are filtered out so that a stable weight is obtained.
IP 68 protection in accordance with DIN EN 60529:Designed for continuous use in wet areas. Can be cleaned with water jet. Submersion is possible. Dustproof.
IP 65 protection in accordance with DIN EN 60529:Designed for temporary contact with liquids. Use a damp cloth for cleaning. Dustproof.
Rechargeable battery pack: rechargeable set
Universal mains adapter: with universal input and optional input socket adapters for EU, GB
Strain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing
Pallet shipment via freight forwarder.Ready for dispatch in 2 days
DAkkS calibration possible. The time required for DAkkS calibration is specified in the pictogram.
Data interface RS-232: To connect the balance to a printer, PC or network
Verification possible. The time required for verification is specified in the pictogram.
Model
Weighing
capacity
[Max]
kg
Readability

[d]
g

Verific.
value
[e]
g
Minimum
load
[Min]
kg
Option
Verification
Option
DAkkS
Calibration
Certificate
BFN 600K-1SM
600
200
200
4
1 ✓
1 ✓
BFN 1T-4SM
1500
500
500
10
0
1 ✓
BFN 1.5T0.5M
1500
500
500
10
1 ✓
1 ✓
BFN 3T-3M
3000
1000
1000
20
1 ✓
1 ✓
Note: For applications that require verification, please order verification at the same time, initial verification at a later date is not possible. Verification at the factory, we need to know the full address of the location of use.

Informații suplimentare

Greutate 25 kg
Dimensiuni Nu se aplică
Kern Model

BFN 1.5T0.5M, BFN 1T-4SM, BFN 3T-3M, BFN 600K-1SM
filter_battery_operated

0
filter_platform_length

100, 125
filter_platform_width

100, 150
filter_weight_capacity

1500, 3000, 600
filter_class_iii

1
