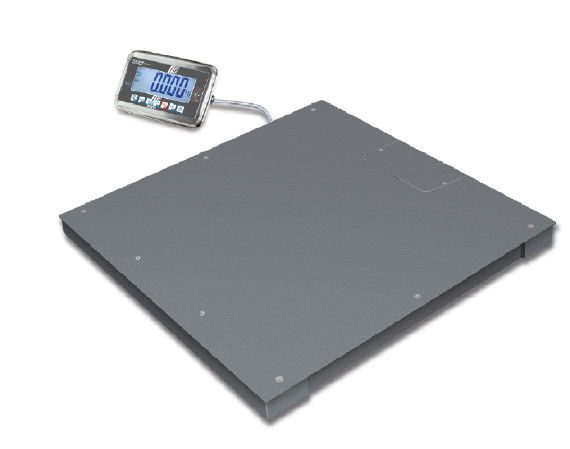

Floor scales BFA/BFA-N

lei 12.790,00 – lei 22.490,00

Weighing bridge with screw-on weighing plate (IP67) and stainless steel display device (IP65), with EC type approval [M]

Golește
SKU: BFA-N Categorie:

Descriere

  • Tough industry standard suitable for use in harsh industrial applications
  • KERN BFA: Weighing plate screwed on from the top, so it easy to remove, hygienic and easy to clean
  • KERN BFA: Weighing bridge corrugated steel plate welded, 4 silicone-coated steel load cells, protection against dust and water splashes IP67
  • KERN BFA-N: Weighing bridge steel, lacquered, 4 silicone-coated steel load cells, protection against dust and water splashes IP67

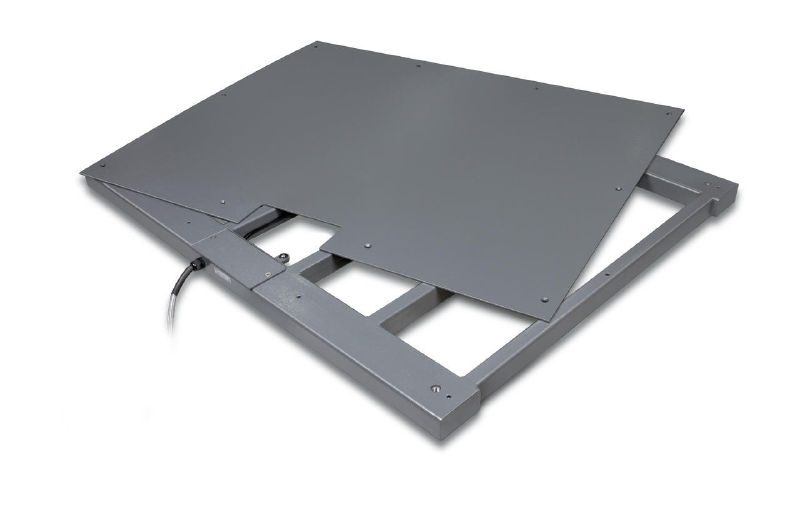

  • Weighing bridge can also be delivered as components without the display device:
  • Easy levelling of the weighing bridge as well as access to the junction box from above
  • Display device: Stainless steel, protection against dust and water splashes IP65
  • Benchtop stand incl. wall mount for display device as standard



  • Note: For verified scales the weighing bridge must be fixed to the floor. Optionally, with an access ramp, a footplate pair or a pit frame
  • Limited tare range with verifiable models (1/6 from [Max])
  • Shipment via freight forwarder. Please ask for dimensions, gross weight, shipping costs

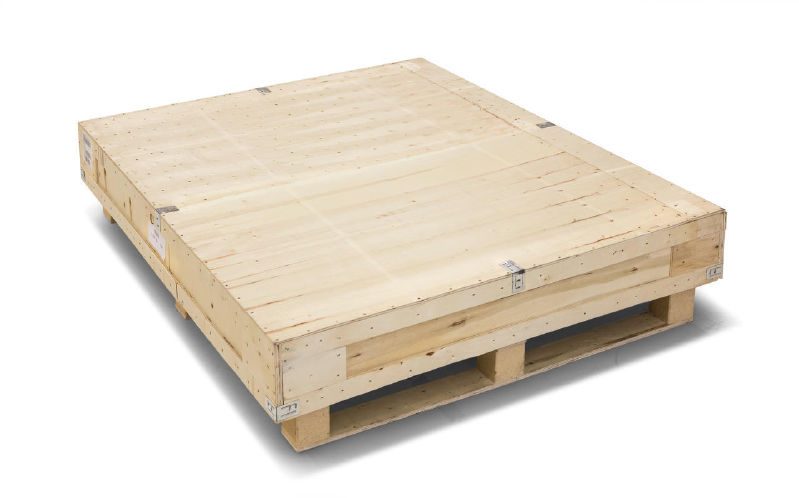

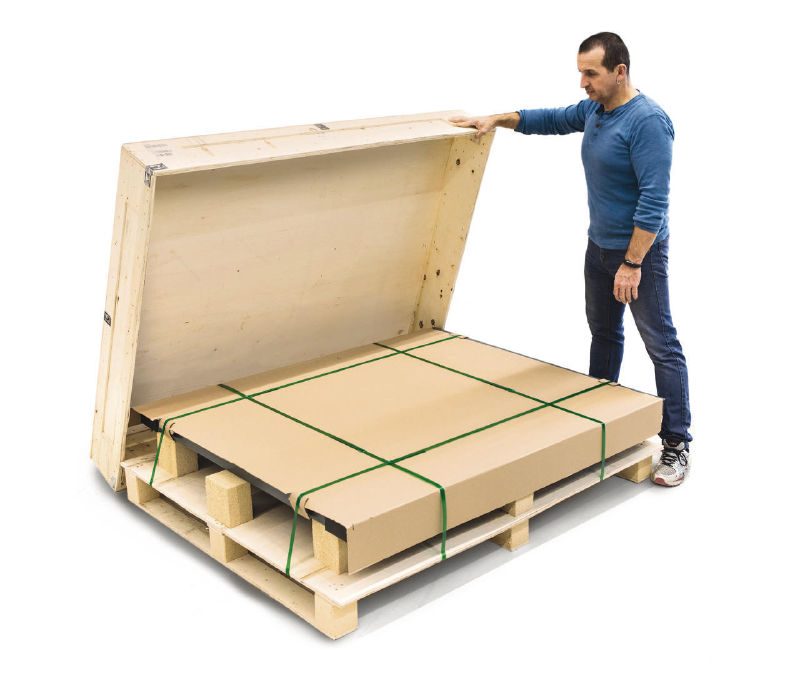

  • Our large, heavy KERN floor scales are sent in a sturdy wooden crate, to ensure safe transportation and protection of the measuring equipment
STANDARD OPTION FACTORY
Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.
Piece counting: Reference quantities selectable. Display can be switched from piece to weight.
Totalising level A: The weights of similar items can be added together and the total can be printed out.
Weighing with tolerance range: Upper and lower limiting can be programmed individually, e. g. sorting and portioning.
Vibration-free weighing: (Animal weighing program) Vibrations are filtered out so that a stable weight is obtained.
IP 65 protection in accordance with DIN EN 60529:Designed for temporary contact with liquids. Use a damp cloth for cleaning. Dustproof.

Display device
IP 67 protection in accordance with DIN EN 60529:Designed for temporary use in wet areas. Can be cleaned with water jet. Temporary submersion is possible. Dustproof.

Weighing bridge
Universal mains adapter: with universal input and optional input socket adapters for EU, GB, USA
Strain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing
Pallet shipment via freight forwarder.Ready for dispatch in 2 days
DAkkS calibration possible. The time required for DAkkS calibration is specified in the pictogram.
Data interface RS-232: To connect the balance to a printer, PC or network
Rechargeable battery pack: rechargeable set
Verification possible. The time required for verification is specified in the pictogram.
Model
Weighing

capacity

[Max]

kg
Read-

ability

[d]

kg
Minimum

load

[Min]

kg
Weighing

plate

W×D×H

mm
Option

Verification
Option

DAkkS

Calibration

Certificate
BFA 600K-1SNM
600
0,2
4
1000×1000×85
1 ✓
1 ✓
BFA 600K-1NM
600
0,2
4
1500×1250×85
0
1 ✓
BGA 1T-4SNM
1500
0,5
10
1000×1000×85
0
1 ✓
BFA 1T-4NM
1500
0,5
10
1500×1250×85
1 ✓
1 ✓
BFA 3T-3NM
3000
1
20
1500×1250×85
1 ✓
1 ✓
BFA 3T-3LM
3000
1
20
1500×1500×85
1 ✓
1 ✓
BFA 6T-3M
6000
2
40
1500×1500×130
1 ✓
1 ✓
Note: For applications that require verification, please order verification at the same time, initial verification at a later date is not possible. Verification at the factory, we need to know the full address of the location of use.

Informații suplimentare

Greutate 25 kg
Dimensiuni Nu se aplică
Kern Model

BFA 1T-4NM, BFA 1T-4SNM, BFA 3T-3LM, BFA 3T-3NM, BFA 600K-1NM, BFA 600K-1SNM, BFA 6T-3M
