HFD

lei 4.090,00 – lei 10.590,00

Robust, high-resolution crane scale up to 12 t

Kern Model	Golește

SKU: HFD Categorie: Hanging scales

Descriere

NEW: The models with M add-on have EC type approval and because of this they are ideal for use in verified applications such as, for example, calculation of a total price, based on weight
NEW[/]: With the TÜV mark, the scale meets the requirements of the standard EN 13155 (Non-fixed load lifting attachments) and EN 61010-1 (Electrical safety)

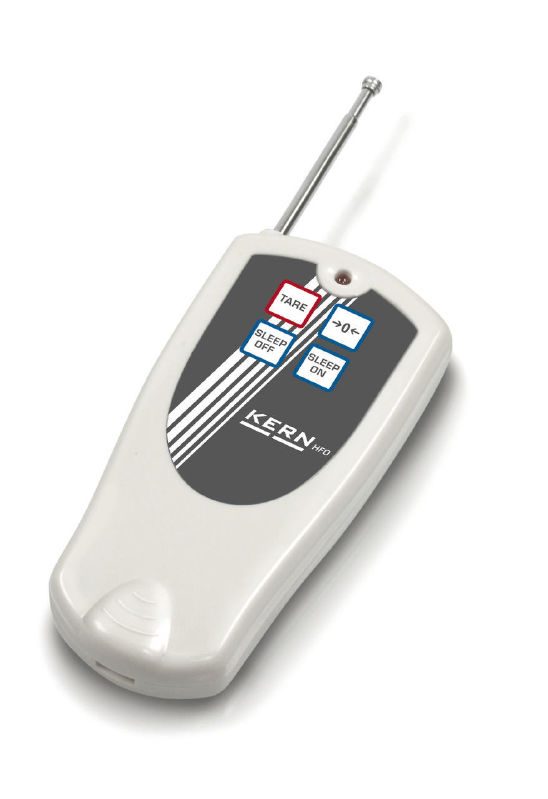

[/] Radio remote control standard. Radio range up to 20 m. All functions can be selected. Batteries included
The models with IP67 add-on have special spray and dust protection to IP67 and because of this they are ideal for use in harsh environments
Because of its stable construction and robust design, it is ideal for continuous use in industrial environment
High mobility: thanks to battery operation and compact construction, it is suitable for use in several locations
Hold function: When the weighing value remains unchanged the weight indicated on the display is automatically ”frozen” until the HOLD key is pressed
Tare: Resets the display to „0” when there is a load on the scale. Now removed or added loads are directly displayed
Solid shackles, non-revolving

Technical data

Superior display size: digit height 30 mm, bright backlight for easy reading of weighing results, even in poor lighting conditions
[/] Rechargeable battery pack internal, standard, operating time up to 70 h without backlight. Battery pack accessible from the outside, which means it is easy to replace
Precision: 0.2 % from [Max]
-10 °C/40 °C

STANDARD							OPTION		FACTORY
	HFD-IP									HFD-M

Model	Weighing range [Max] kg	Readout [d] g	A mm	B mm	C mm	D mm	E mm	F mm	G mm	Option DAkkS Calibration Certificate
Triple-range balance (T=Triple) switches automatically to the next largest weighing range [Max.] and readout [d].
HFD 600K-1	150 \| 300 \| 600	50 \| 100 \| 200	194	129	145	421	383	50,8	50,8	1 ✓
HFD 1T-4	300 \| 600 \| 1500	100 \| 200 \| 500	194	129	145	421	383	50,8	50,8	1 ✓
HFD 3T-3	600 \| 1500 \| 3000	200 \| 500 \| 1000	194	129	145	421	383	50,8	50,8	1 ✓
HFD 6T-3	1500 \| 3000 \| 6000	500 \| 1000 \| 2000	194	129	145	477	426	68,3	68,3	1 ✓
HFD 10T-3	3000 \| 6000 \| 12000	1000 \| 2000 \| 5000	194	129	145	573	510	82,5	82,5	1 ✓
protection against dust and water splashes IP67
HFD 600K-1IP	150 \| 300 \| 600	50 \| 100 \| 200				421	383	50,8	50,8	1 ✓
HFD 1T-4IP	300 \| 600 \| 1500	100 \| 200 \| 500				421	383	50,8	50,8	1 ✓
HFD 3T-3IP	600 \| 1500 \| 3000	200 \| 500 \| 1000				421	383	50,8	50,8	1 ✓
HFD 6T-3IP	1500 \| 3000 \| 6000	500 \| 1000 \| 2000				477	426	68,3	68,3	1 ✓
HFD 10T-3IP	3000 \| 6000 \| 12000	1000 \| 2000 \| 5000				573	510	82,5	82,5	1 ✓
Note: For applications that require verification, please order verification at the same time, initial verification at a later date is not possible. Verification at the factory, we need to know the full address of the location of use.
HFD 600K-1M	600	200	194	129	145	421	383	50,8	50,8	1 ✓
HFD 1T-4M	1500	500	194	129	145	421	383	50,8	50,8	1 ✓
HFD 3T-3M	3000	1000	194	129	145	421	383	50,8	50,8	1 ✓
HFD 6T-3M	6000	2000	194	129	145	477	426	68,3	68,3	1 ✓
HFD 10T-3M	12000	5000	194	129	145	573	510	82,5	82,5	1 ✓

Greutate	Nu se aplică
Dimensiuni	51 × 38 × 14 cm
Kern Model	HFD 10T-3, HFD 10T-3IP, HFD 10T-3M, HFD 1T-4, HFD 1T-4IP, HFD 1T-4M, HFD 3T-3, HFD 3T-3IP, HFD 3T-3M, HFD 600K-1, HFD 600K-1IP, HFD 600K-1M, HFD 6T-3, HFD 6T-3IP, HFD 6T-3M
filter_battery_operated	0
filter_weight_capacity	12000, 150, 1500, 300, 3000, 600, 6000
filter_class_iii	1
