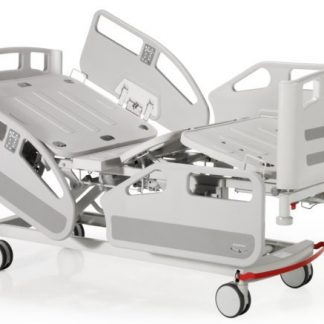

Basic care – ICU bed

Descriere

PLATFORM:

• Epoxy coated steel tube frame.
• Head and footboard easy to assemble without tools.
• Complete with supports for accessories (IV drip rod, lifting pole, etc.)
• Mattress retainers on both sides to allow a correct lying surface positioning.
• Scissor-lift raising system for greater stability and working load up to 230kg.

COMFORT:

• 4 independent and detachable ABS lying sections. Useful surface 100%.
• OPTIONAL bed extension (+- 20 cm). Sliding linen holder and nurse control box storing location.
• Optional radiolucent lying platform with backrest cassette holder (Ref.CHV26).
• Automatic anti-decubitus regression system to allow a trunk plane regression (11 cm) it allows a protection against bedsore.

HANDLING:

• Sections adjustment accomplished by low tension electric motors, in compliance with standard rule EN 60601-1
• Independent foot angle from knee angle by mechanical activation, providing greater ergonomics.
• Electric height adjustment range from 41,5cm  to 80,5cm.
• Centralized braking system and steering facility- Castors Ø150 mm.
• 5th wheel to allow an easy movement and turn of the bed through narrow corridors and doors (optional ref.CHV24).

SAFETY:

• Patient handset with drawing and pictograms for an easy use, including a system to block movements
• Thermoplastic undercarriage cover to protect the bed mechanisms and to allow an easy cleaning.
• 4 independent ABS side rails in accordance with standard rule EN 60601-2-52 (optional metal epoxy side rails).
• Quick emergency release backrest dropping system in the event of electrical or battery back-up failure.
• Anti-trapping systems with automatic motor switch off in the event of detecting any obstacle.
• Height adjustment actuator fall-preventer in case of failure.

Electric features:

• Power Supply: 230 V 50Hz / 110V 60Hz
• Maximum current intake: 3,15 A 230V
• Liquid ingress protection indicator: IP X54
• C lass protection: Class II
• Electric shock protection: Type B

Technical data:

• External dimensions: 213 x 96cm.
• Patient surface: 200 x 87cm.
• Height adjustment: 41,5 to 80,5cm.
• Backrest tilting: 70º
• Legrest tilting: 30º
• Backrest autoregression plane: 11cm.
• Legrest autoregression plane: 4cm.
• Maximum working load: 230kg.
• Weight without accessories: 150kg.
