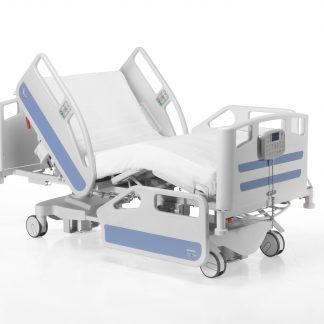

Galaxy Compact – Compact ICU bed

Descriere

Fully electric bed. Maximum safe working load 250 Kg. Four independent and detachable ABS lying sections.
Integrated bed extension (±15 cm). Cardiac chair position to make it easier for patients to stay in bed. Electric adjustment for height, sections, Trendelemburg and reverse trendelemburg. Patient handset. CPR position control that allows the backrest to be placed horizontally. Autocontour (11 cm of support / 7 cm of pelvis). Coated wheels of 150 mm diameter. Protection bumpers on each corner. ABS base cover. Four sockets for accessories (IV pole, lifting pole, etc.). Mattress retainers. Central braking system and steer. Angle and trendelemburg indicator (on split side rails option). Bilateral accessory holder. 8 hooks for immobilization belts.

PLATFORM:

• Epoxy coated steel tube frame.
• Head and footboard easy to assemble without tools. (optional headboard fixed to the base)
• Complete with supports for accessories (IV drip rod, lifting pole,etc. )
• Mattress retainers on both sides to alow a correct lying Surface possitioning.
• Scissor-lift raising system for greater stability and working load up to 230 kg.

COMFORT:

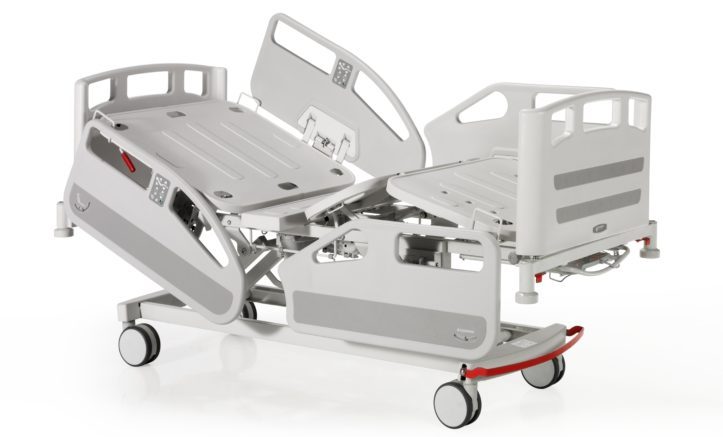

• 4 independent and detachable ABS lying sections. Useful surface 100%.
• Radiolucent lying platform with optional backrest cassette holder (Ref.CHV26) .
• Double automatic anti-decubitus regression system to allow a trunk plane regression (11 cm) and leg regression (7cm). The double auto-regression system leaves a clear space for legs and gluteus up to 18 cm. By doing so, the double auto-regression system allows a protection against bedsore..
• Sections adjustment accomplished by low tension electric motors, in compliance with standard rule EN 60601-1.
• Independent foot angle from knee angle by mechanical activation, providing greater ergonomy.
• Cardiac chair position to provide a more comfortable patient stay.

HANDLING:

• Electric height adjustment range from 430 mm to 765 mm.
• Trendelemburg and reverse trendelemburg (+- 16º) by electrical activation.
• Centralized braking system and steering facility- Castors Ø150 mm.
• Patient handset with drawing and pictograms for an easy use with locking key

SECURITY:

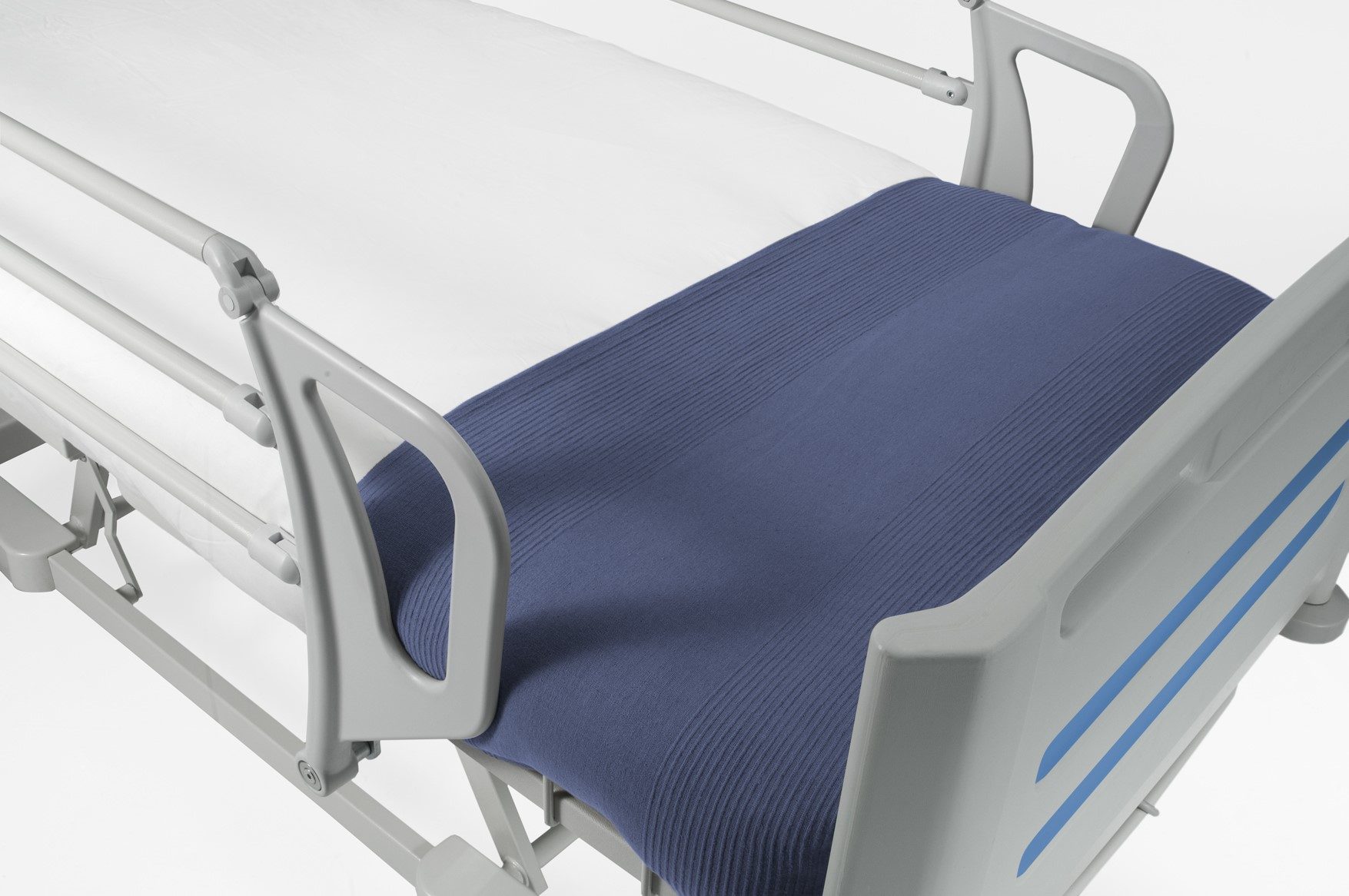

• Foldable full length side rails in epoxy coated steel or 4 independent ABS side rails in accordance with standard rule EN 60601-2-52.
• Anti-trapping systems with automatic motor switch off in the event of detecting any obstacle.
• Height adjustment actuator fall-preventer in case of failure.

Electrical features:

• Power Supply: 230 V  50Hz
• Maximum current intake: 1.6A, 370 Volt.
• Liquid ingress protection indicator: IP 66
• Class protection: Class I.
• Electric shock protection: Type B.

Technical data:

• External dimensions: 2150 x 960 mm.
• Patient surface: 2080 x 870 mm.
• Height adjustment: 430 to 765 mm.
• Backrest tilting: 70º
• Legrest tilting: 45º
• Backrest autoregression plane: 110mm
• Legrest autoregression plane: 70mm
• Trendelemburg/reverse tredelemburg: 16º/16º
• Maximum working load: 230kg.
• Weight without accessories: 150kg.

Accessories: Complete with supports for accessories (IV drip rod, lifting pole,etc. )

• All products manufactured by Medisa comply with the directive 2007/47/CEE concerning medical devices (Annex I y Annex VII).
• All processes have been evaluated and certified by standard requirements UNE-EN ISO 9001:2008 about Quality Management System and the standard UNE-EN ISO 14001:2004 of Enviroment Management System.
• Medisa products are compliant the following standards:
• IEC 60601-1
• IEC 60601-1-2
• IEC 60601-2-52
• Certified by Bureau Veritas.
• CERTIFICATES Nº ES047196-1 / ES047195-1
• Scope: design, manufacturing, marketing, technical assistance for hospital beds and chairs.
